AdditionSee full documentation

image =

addImgImg (inImg1,inImg2)

Detailed Description

addition of 2 images

On output image values are given by:

Input and output images must have same size.

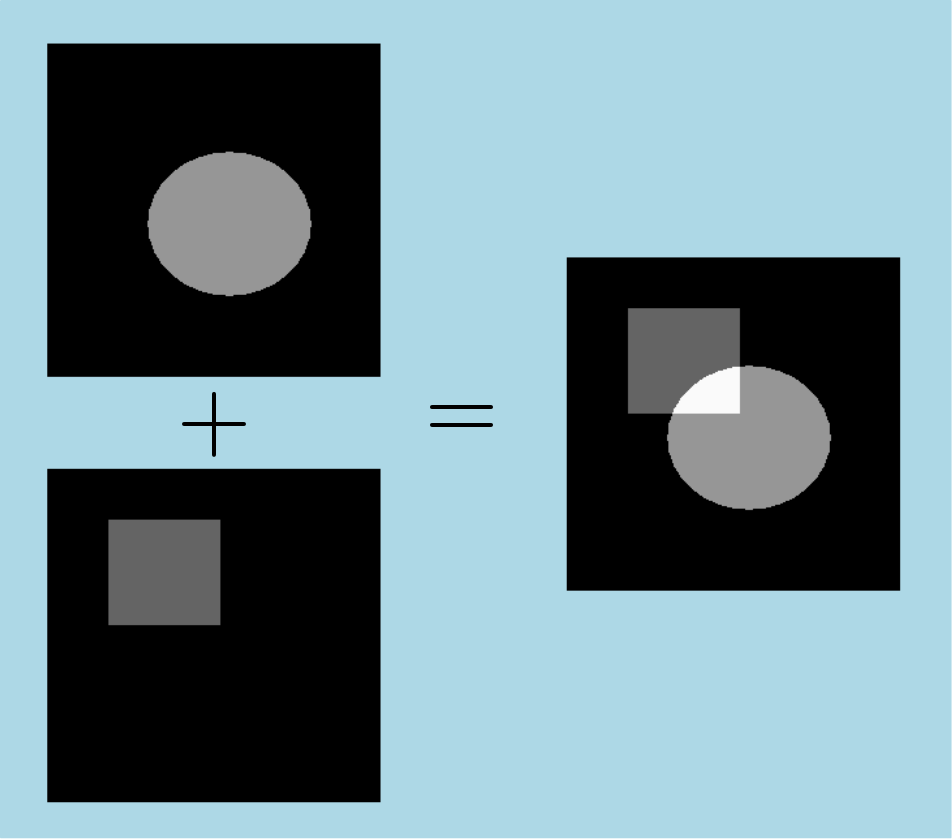

Here is an example of an addition operation applied to two 8-bits grey level images:

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLArithmetic as arithm

Code Example

    # opening input images
    inGeometry = PyIPSDK.geometry2d(PyIPSDK.eImageBufferType.eIBT_UInt8, 510, 509)
    inImg1 = PyIPSDK.loadRawImageFile(inputImg1Path, inGeometry)
    inImg2 = PyIPSDK.loadRawImageFile(inputImg2Path, inGeometry)

    # images addition
    outImg = arithm.addImgImg(inImg1, inImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLArithmetic/Processor/AddImgImg/AddImgImg.h>

Code Example

        // open input images
        ImageGeometryPtr pInputImageGeometry = geometry2d(inType, sizeX, sizeY);
        ImagePtr pInImg1 = loadRawImageFile(in1Path, *pInputImageGeometry);
        ImagePtr pInImg2 = loadRawImageFile(in2Path, *pInputImageGeometry);

        // Sample with a generated output image
        // ------------------------------------

        // compute addition of input images
        ImagePtr pAutoOutImg = addImgImg(pInImg1, pInImg2);

        // Sample with a provided output image
        // -----------------------------------

        // create output image
        ImageGeometryPtr pOutputImageGeometry = geometry2d(outType, sizeX, sizeY);
        boost::shared_ptr<MemoryImage> pOutImg(boost::make_shared<MemoryImage>());
        pOutImg->init(*pOutputImageGeometry);

        // compute addition of input images
        addImgImg(pInImg1, pInImg2, pOutImg);
