Bitwise nand

image =

bitwiseNAndImgImg (inIntImg1,inIntImg2)

Detailed Description

Bitwise nand operation on 2 input images

On output image values are given by:

(with corresponding to the Bitwise not operator and corresponding to the Bitwise and operator)

Input and output images must have same size and buffer type. Buffers must be of type integer

A Bitwise nand operator applied to 2 integers performs the logical nand (abbreviation for "not and") operation on each pair of corresponding bits of the binary representation of these 2 integers. As shown in the truth table below, the result in each position is 0 if the first bit is 1 and the second bit is 1; otherwise, the result is 1.

Input bit #1	Input bit #2	Output bit :
0	0	1
0	1	1
1	0	1
1	1	0

For instance, if we compute the result of a Bitwise nand on the two integers 5 and 3, we obtain;

   0101 (decimal  5)
!& 0011 (decimal  3)
=  1110 (decimal 14)

See also

"Bitwise operation --- Wikipedia, The Free Encyclopedia", 2014, http://en.wikipedia.org/w/index.php?title=Bitwise_operation&oldid=604175200

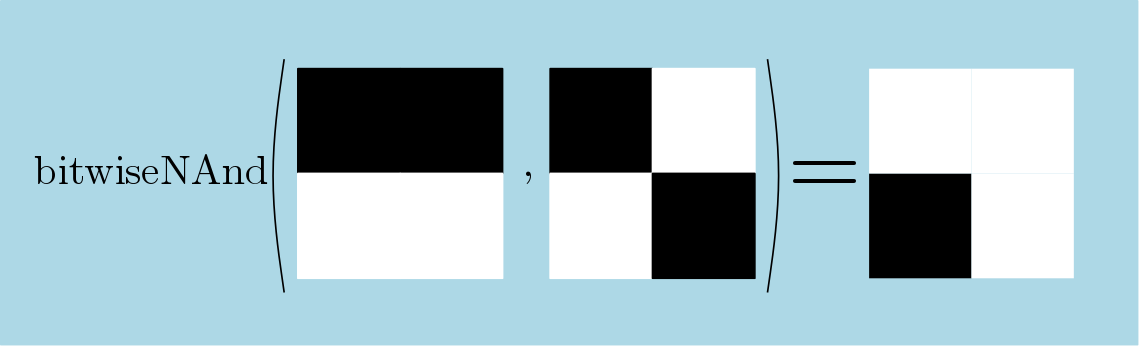

Here is an example of a Bitwise nand operation applied to two 2D binary images (black pixels have value 0, white pixels have value 1):

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLLogical as logic

Code Example

    # opening of input images
    inImg1 = PyIPSDK.loadTiffImageFile(inputImgPath1)
    inImg2 = PyIPSDK.loadTiffImageFile(inputImgPath2)

    # bitwize 'nand' computation
    outImg = logic.bitwiseNAndImgImg(inImg1,  inImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLLogical/Processor/BitwiseNAndImgImg/BitwiseNAndImgImg.h>

Code Example

        // open input images
        ImageGeometryPtr pImageGeometry = geometry2d(inType, sizeX, sizeY);
        ImagePtr pInImg1 = loadRawImageFile(in1Path, *pImageGeometry);
        ImagePtr pInImg2 = loadRawImageFile(in2Path, *pImageGeometry);

        // compute bitwise not and on input images
        ImagePtr pOutImg = bitwiseNAndImgImg(pInImg1, pInImg2);
