Bitwise Subtraction

image =

bitwiseSubImgImg (inIntImg1,inIntImg2)

Detailed Description

Subtract two binary image to remove pixels in the image 2 from the image 1.

This algorithm computes a bitwise butraction between two images. The bitwise subtraction is given by the formula :

A Bitwise sub operator applied to 2 integers performs the logical and operation on each pair of corresponding bits of the binary representation of these 2 integers. As shown in the truth table below, the result in each position is 1 if the first bit is 1 and the second bit is 1; otherwise, the result is 0.

Input bit #1	Input bit #2	Output bit :
0	0	0
0	1	0
1	0	1
1	1	0

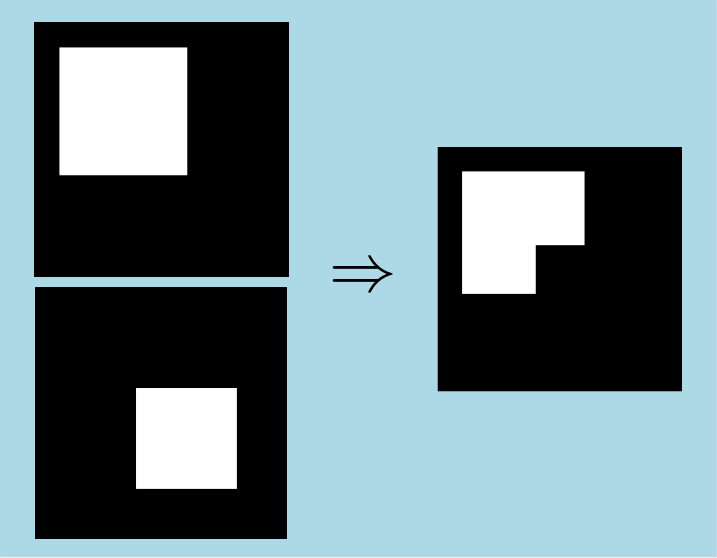

Here is an example of a Bitwise sub operation applied to two 2D binary images (black pixels have value 0, white pixels have value 1):

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLLogical as logic

Code Example

    # bitwize 'sub' computation
    outImg = logic.bitwiseSubImgImg(inImg1,  inImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLLogical/Processor/BitwiseSubImgImg/BitwiseSubImgImg.h>

Code Example

            // Sample with a generated output image
            // ------------------------------------

            // compute addition of input images
            ImagePtr pAutoOutImg = bitwiseSubImgImg(pInImg1, pInImg2);

            // Sample with a provided output image
            // -----------------------------------

            // create output image
            ImageGeometryPtr pOutputImageGeometry = geometry2d(eImageBufferType::eIBT_Binary, sizeX, sizeY);
            boost::shared_ptr<MemoryImage> pOutImg(boost::make_shared<MemoryImage>());
            pOutImg->init(*pOutputImageGeometry);

            // compute addition of input images
            bitwiseSubImgImg(pInImg1, pInImg2, pOutImg);
