Boundary 2dSee full documentation

image =	boundary2dImg (inBinImg)
image =	boundary2dImg (inBinImg,neighborhood2dType)

Detailed Description

Algorithm allowing to extract boundary of a binary 2d image.

This algorithm allows to extract boundary of a binary 2d image with respect to a neighborhood type.

For more informations on used neighborhood 2d types report to 2d neighborhood models.

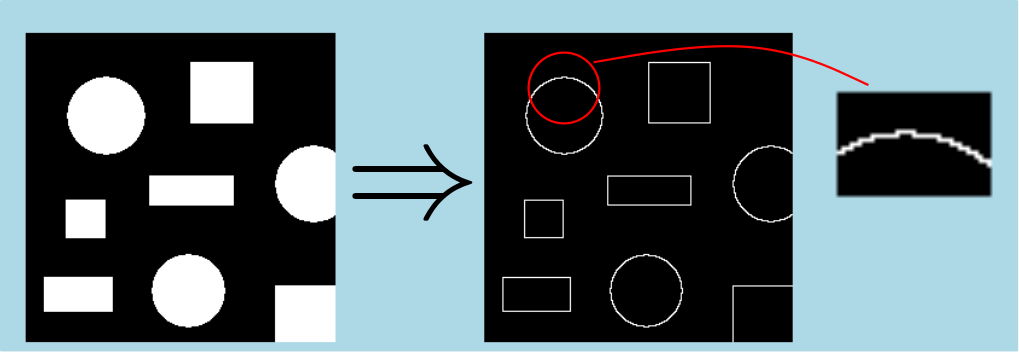

Here is an example of a boundary extraction operation applied to a binary input image (with 8 connexity neighborhood type) :

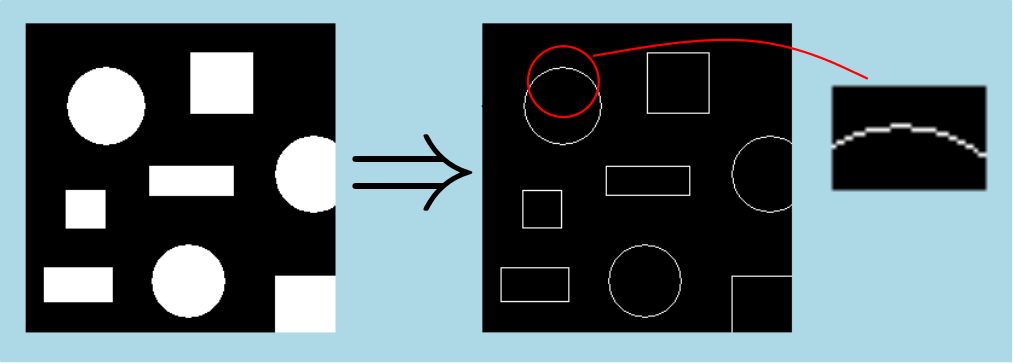

Here is an example of a boundary extraction operation applied to a binary input image (with 4 connexity neighborhood type) :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLBasicMorphology as morpho

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # boundary 2d image computation
    outImg = morpho.boundary2dImg(inImg)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLBasicMorphology/Processor/Boundary2dImg/Boundary2dImg.h>

Code Example

        // opening input image
        ImagePtr pInBinImg = loadTiffImageFile(inputImgPath);

        // compute boundary on input image
        ImagePtr pOutImg = boundary2dImg(pInBinImg, neighborhood2dType);
