Measure allowing to compute the position of the centroid of the envelope along the z axis.

This measure computes the z coordinate of the bounding boxes centers calculated for each shape.

In the case of 2d images, the center's coordinate along the z-axis is set to 0.

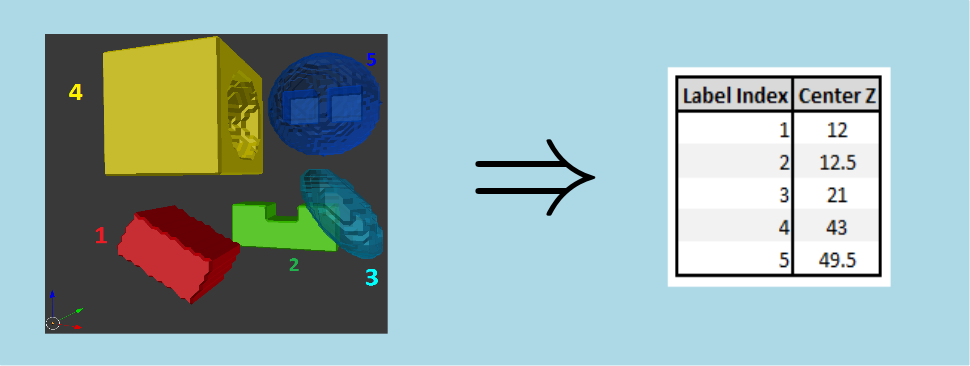

Here is an example of z center measurement :

See [Concept] Bounding Box 2d and [Concept] Bounding Box 3d for more details about the bounding box calculation.

Measure allowing to compute the position of the centroid of the envelope along the z axis

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	Length	None	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "BoundingBoxMaxZMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("BoundingBoxMaxZMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg3d = loadTiffImageFile(inputGreyImgPath, eTiffDirectoryMode::eTDM_Volume);
    // read entity shape 3d collection used for processing
    Shape3dCollPtr pShape3dColl = boost::make_shared<Shape3dColl>();
    readFromBinaryFile(inputShape3dCollPath, *pShape3dColl);
    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "BoundingBoxCenterZMsr");
    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis3d(pInGreyImg3d, pShape3dColl, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pBoundingBoxCenterZOutMsr = pOutMeasureSet->getMeasure("BoundingBoxCenterZMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pBoundingBoxCenterZOutMsr->getMeasureResult());
