Clean Skeleton 2d

image =

cleanSkeleton2dImg (inBinImg)

Detailed Description

Clean the input skeleton image to keep only the longest branch.

This algorithm remove all secondary branches of a skeleton in order to keep only the longest branch.

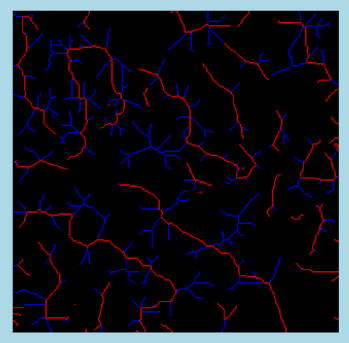

Here is an example of result of cleaned skeleton :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLAdvancedMorphology as advmorpho

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # Comparison
    outImg = advmorpho.cleanSkeleton2dImg(inImg)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLAdvancedMorphology/Processor/CleanSkeleton2dImg/CleanSkeleton2dImg.h>

Code Example

        // Load the input skeleton image
        ImagePtr pInSkelImg = loadTiffImageFile(inputPath);

        // Clean the skeleton
        ImagePtr pOutImg = cleanSkeleton2dImg(pInSkelImg);
