Computation of complex accumulator matrix for Hough circles detectionSee full documentation

realImg,imImg =

houghCirclesPhaseCoded2dImg (inGxImg,inGyImg,radiusRange)

Detailed Description

computes the complex accumulator matrix used by the Hough circles detector ("gradient phase-coded" method)

This algorithm computes, from the 2 gradient images (respectively along x and y axis) of the same grey levels 2d image, the complex accumulator matrix used to detect circles in an image, using Hough algorithm ("gradient phase-coded" method).

See Hough circles detection for more information.

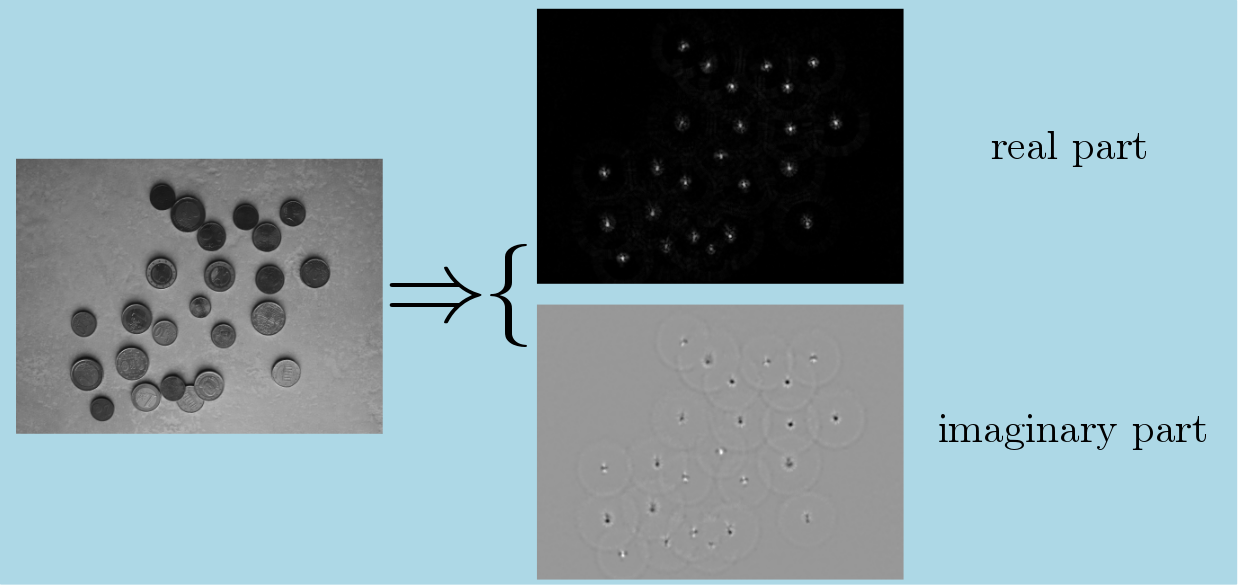

Below is an example of image returned by the algorithm on gradient images computed from an image of coins:

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLFeatureDetection as fd
import PyIPSDK.IPSDKIPLFiltering as filter

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # associated gradient images computation
    gxImg,  gyImg = filter.gaussianGradient2dImg(inImg,  1.0)

    # radius range detection definition
    radiusRange = PyIPSDK.createHoughCirclesRadiusRange(15,  20)

    # hough circle phase coded detection computation
    outRealImg,  outImImg = fd.houghCirclesPhaseCoded2dImg(gxImg,  gyImg,  radiusRange)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLFeatureDetection/Processor/HoughCirclesPhaseCoded2dImg/HoughCirclesPhaseCoded2dImg.h>

Code Example

#include <IPSDKImage/Geometry/ImageGeometryInstances.h>
#include <IPSDKImage/Image/Memory/MemoryImage.h>
#include <IPSDKImageFile/Tiff/TiffImageFileUtils.h>
#include <IPSDKIPL/IPSDKIPLFeatureDetection/Processor/HoughCirclesPhaseCoded2dImg/HoughCirclesPhaseCoded2dImg.h>

#include <utility>

// function returning the complex accumulation image (one image for real part
// + one image for imaginary part) used by Hough circle detector
// ("gradient phase-coded" method) applied on an input image loaded from a given
// file to detect circles of radii belonging to a given range
std::pair<ipsdk::image::ImagePtr, ipsdk::image::ImagePtr>
computeHoughCirclesPhaseCoded2dImages(
    const std::string& inImgFilePath,
    ipUInt64 nMinRadius,
    ipUInt64 nMaxRadius)
{
    // load input image from file specified by the user
    ipsdk::image::ImagePtr pInImg =
        ipsdk::image::file::loadTiffImageFile(inImgFilePath);

    // compute gradient images, in x and y
    GradientXYImg gxyImg =
        gaussianGradient2dImg(pInImg, 1.0f, 1.0f, createGaussianCoverage(0.997f, 2));
    ImagePtr pInGxImg = gxyImg._pXGradImg;
    ImagePtr pInGyImg = gxyImg._pYGradImg;

    // apply Hough circles detection on gradient images
    HoughCirclesComplexImg hcComplexImg =
    ipsdk::imaproc::fd::houghCirclesPhaseCoded2dImg(
        pInGxImg,
        pInGyImg,
        ipsdk::imaproc::attr::createHoughCirclesRadiusRange(nMinRadius, nMaxRadius));

    // return the accumulation image
    return std::make_pair(hcComplexImg._pRealImg, hcComplexImg._pImImg);
}
