[Concept] Skeleton 2d Thickness

Extraction of shape 2d skeleton thickness informations.

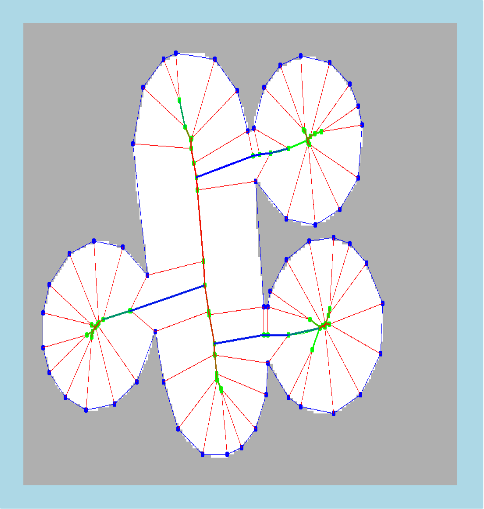

Skeleton 2d thickness measure is based on skeleton 2d measure (see [Concept] Skeleton 2d). This measure allows to extract thickness of shape around edges of its skeleton. On the following figure, skeleton edge thicknesses are represented using a color map :

• blue for minimum thicknesses
• green for mean thicknesses
• red for maximum thicknesses


Note

Note that measure results depend on skeleton 2d holes processing policy See [Concept] Skeleton 2d for more informations on usage of ipsdk::shape::segmentation::eSkeleton2dHolesPolicy enumerate value.

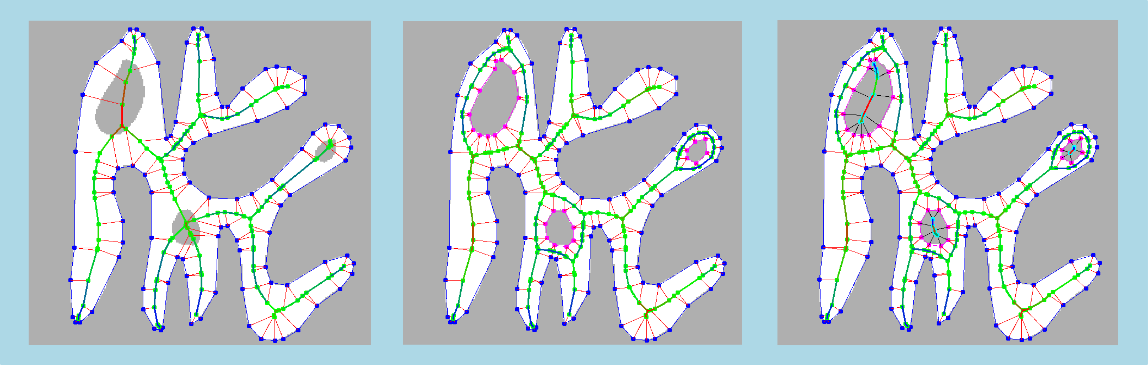

From left to right, skeleton thickness is computed with following processing hole policy eSHP_Ignored, eSHP_ExtractedButNotAnalyzed and eSHP_ExtractedAndAnalyzed.
