ConvexHullArea3dSee full documentation

Measure allowing to compute the area of the 3d convex hull for shape.

The ConvexHullArea3d measure computes the area of the convex hull calculated for the shape.

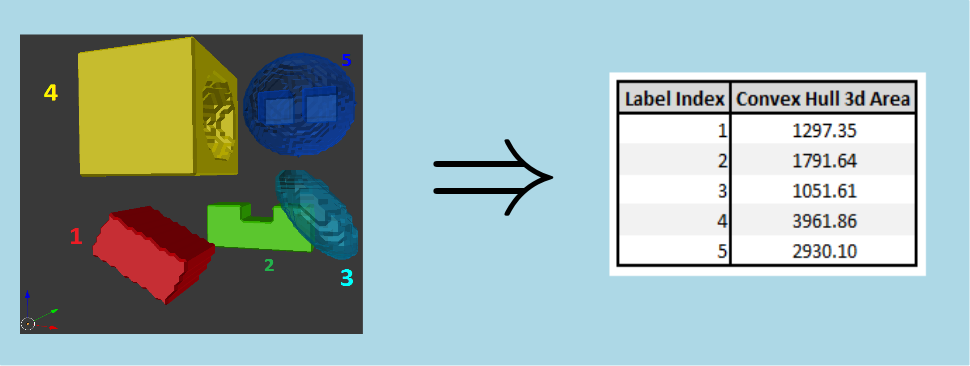

Here is an example of area 3d measurement :

See [Concept] Convex Hull 3d for more details about the convex hull calculation and Area3d for more details about the area computation.

Measure allowing to compute the area of the 3d convex hull for shape

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	Area	None	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "ConvexHullArea3dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("ConvexHullArea3dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg3d = loadTiffImageFile(inputGreyImgPath, eTiffDirectoryMode::eTDM_Volume);

    // read entity shape 3d collection used for processing
    Shape3dCollPtr pShape3dColl = boost::make_shared<Shape3dColl>();
    readFromBinaryFile(inputShape3dCollPath, *pShape3dColl);

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "ConvexHullArea3dMsr");

    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis3d(pInGreyImg3d, pShape3dColl, pMeasureInfoSet);

    // retrieve associated results
    const MeasureConstPtr& pConvexHullArea3dOutMsr = pOutMeasureSet->getMeasure("ConvexHullArea3dMsr");
    const ValueMeasureResult<ipReal64>& outResults = static_cast<const ValueMeasureResult<ipReal64>&>(pConvexHullArea3dOutMsr->getMeasureResult());
