image = getSlice3dImg (inImg3d,axis,sliceIndex)

Detailed Description

Creates a 2D image from a slice along a given axis (x, y, or z) of a 3D image.

The result of this algorithm is a 2D extracted along the direction InAxis from the input 3D image in the slice InSliceIndex of the 3D output image.

The InAxis parameter indicates the direction of the copy:

the x-direction will result in a y-z slice
the y-direction will result in a x-z slice
the z-direction will result in a x-y slice

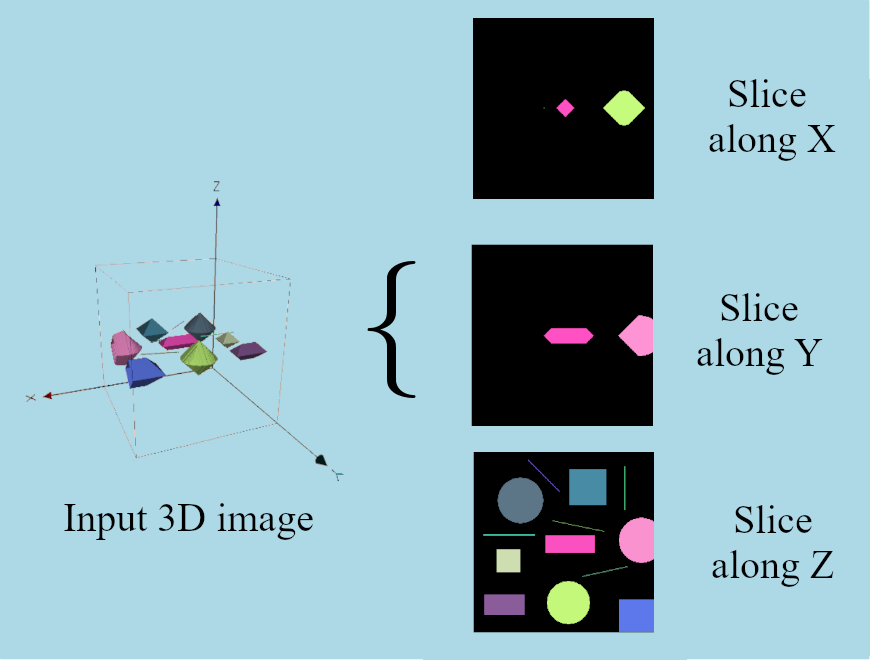

Here is an example of a lice extraction from a 3d image along each axis:

Example of Python code :

Example imports

import PyIPSDK

import PyIPSDK.IPSDKIPLUtility as util

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)
    outImg = util.getSlice3dImg(inImg, PyIPSDK.eA_X, 100)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLUtility/Processor/GetSlice3dImg/GetSlice3dImg.h>

Code Example

        // Extract a XY slice along the z-axis at z=1
        ImagePtr pOutImgZ = getSlice3dImg(pInImg3d, eAxis::eA_Z, 1);
        // Extract a XZ slice along the y-axis at y=100
        ImagePtr pOutImgY = getSlice3dImg(pInImg3d, eAxis::eA_Y, 100);
        // Extract a YZ slice along the x-axis at x=100
        ImagePtr pOutImgX = getSlice3dImg(pInImg3d, eAxis::eA_X, 100);
