Definition

Introduction

A kernel is a matrix (which may be dense or sparse) used in image convolution operations. Content of such a matrix allows image processing operations such as : blurring, sharpening, edge detection, etc.

See also

https://en.wikipedia.org/wiki/Kernel_(image_processing)

Using kernels

In 2d case, a kernel is associated to class ipsdk::KernelXY and is represented by a collection of offsets which is associated to class ipsdk::OffsetXY defining its shape, each offset being associated to a value.

In 3d case, a kernel is associated to class ipsdk::KernelXYZ and its collection of offsets is simply replaced by a class ipsdk::OffsetXYZ.

The following examples illustrates the definition of a 2d square user custom kernel given by :

#include <IPSDKBaseData/Pattern/Kernel/KernelUtils.h>

using namespace ipsdk;

void testCustomKernel()
{
    const ipInt32 halfKernelSize = 1;
    const ipInt32 kernelSize = 2 * halfKernelSize + 1;
    Real32Vector valueColl(kernelSize * kernelSize);
    valueColl[0] = -1; valueColl[1] = 0; valueColl[2] = 1;
    valueColl[3] = -1; valueColl[4] = 0; valueColl[5] = 1;
    valueColl[6] = -1; valueColl[7] = 0; valueColl[8] = 1;

    // create kernel
    // (note that null values are ignored)
    KernelXYConstPtr pKernel = squareKernelXY(halfKernelSize, valueColl);
}

The same kernel creation can be written in Python:

import PyIPSDK

# create kernel
# (note that null values are ignored)
valueColl = [-1, 0, 1,
             -1, 0, 1,
             -1, 0, 1]
kernel = PyIPSDK.squareKernelXY(1, valueColl)

# display associated content
print(str(kernel))

The following C++ example illustrates the definition of two separable gaussian kernels which can be used for smoothing operation :

#include <IPSDKBaseData/Pattern/Kernel/Instances/GaussianKernel.h>

using namespace ipsdk;

void testGaussianKernel()
{
    const ipReal32 stdDevX = 1.5f;
    const ipReal32 stdDevY = 1.5f;
    const ipReal32 gaussianRatio = 0.997f;
    const ipUInt32 minHalfKernelSize = 2;

    // create kernels
    KernelXYConstPtr pKernelX, pKernelY;
    separableGaussianSmoothing(stdDevX, stdDevY, gaussianRatio, minHalfKernelSize, pKernelX, pKernelY);
}

The translation in Python is:

import PyIPSDK

# create kernels
kernelX, kernelY = PyIPSDK.separableGaussianSmoothing2d(1.5, 1.5, 0.997, 2)

# display associated content
print(str(kernelX))

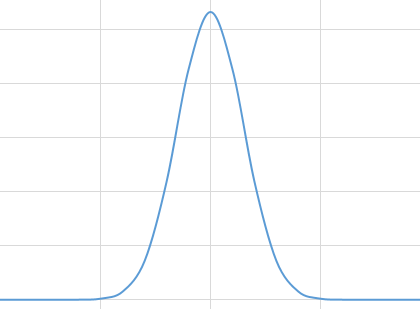

Associated kernel values will be sampled on a curve looking like :

Combination of these kernels long X and Y axis allows 2d processing.

See also

https://en.wikipedia.org/wiki/Separable_filter

Note

Following functions can also be usefull to create user dedicated kernels:

• ipsdk::math::normalDistribution
• ipsdk::math::normalDistributionFirstDerivative
• ipsdk::math::normalDistributionSecondDerivative
