Returns the phi orientation (in the x-y plan) of the maximum 3D Feret diameter.

Considering a (phi-theta 3D angle representation), this measure returns the phi component of the maximum Feret 3D diameter orientation.

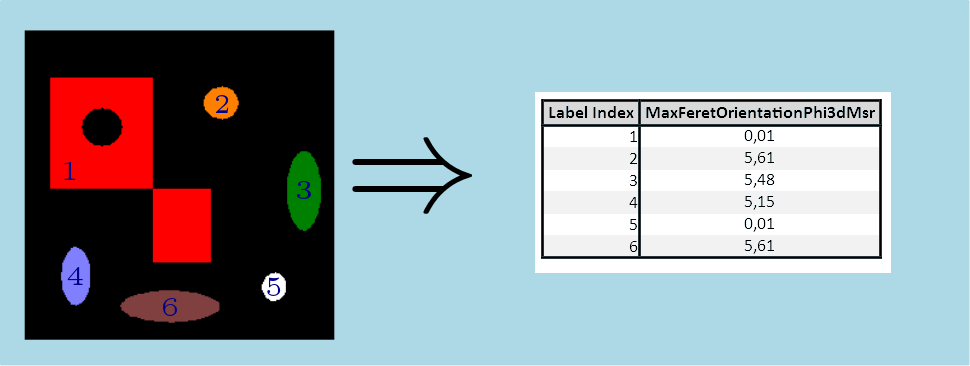

Here is an example of orientation measurement :

Returns the phi orientation (in the x-y plan) of the maximum 3D Feret diameter

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	Angle	MaxFeretOrientationPhi3dMsrParams	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "MaxFeretOrientationPhi3dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("MaxFeretOrientationPhi3dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "MaxFeretOrientationPhi3dMsr");

    // compute measure
    MeasureSetPtr pOutMeasureSet = labelAnalysis3d(pLabelImg, pLabelImg, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pMaxFeretOrientationPhi3dOutMsr = pOutMeasureSet->getMeasure("MaxFeretOrientationPhi3dMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pMaxFeretOrientationPhi3dOutMsr->getMeasureResult());
