Returns the z coordinate of the first point used to compute the maximum Feret diameter.

This measure returns the z-coordinate of the first point used to compute the maximum Feret diameter.

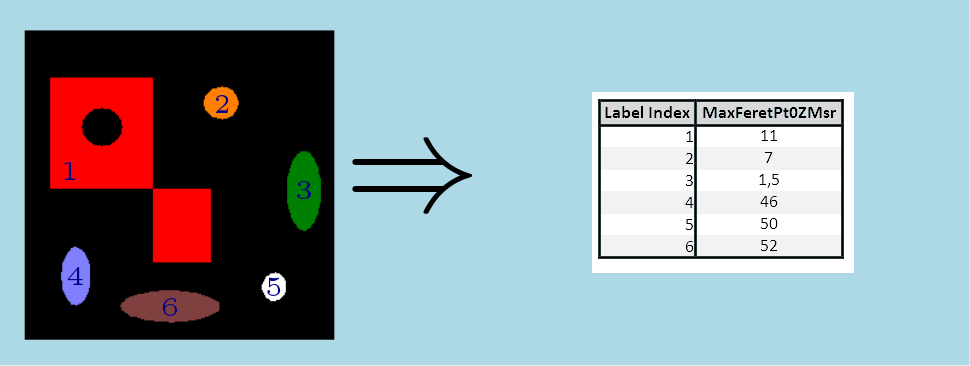

Here is an example of orientation measurement :

Returns the z coordinate of the first point used to compute the maximum Feret diameter

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	None	MaxFeretPt0ZMsrParams	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 2d case :

Generic example in 3d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "MaxFeretPt0ZMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("MaxFeretPt0ZMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

        // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "MaxFeretPt0ZMsr");
    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = labelAnalysis3d(pLabelImg, pLabelImg, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pMaxFeretPt0ZOutMsr = pOutMeasureSet->getMeasure("MaxFeretPt0ZMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pMaxFeretPt0ZOutMsr->getMeasureResult());
