MinEnclosingCircle2dSee full documentation

circle of minimum radius enclosing shape

This measure allows to compute enclosing circle of minimum radius for each shape.

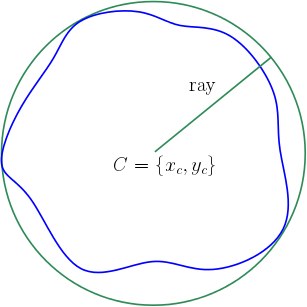

Given a shape, algorithm will compute coordinates of the circle enclosing shape with minimum radius :

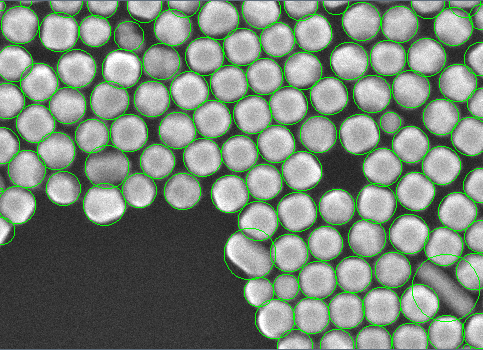

Here is an example of enclosing circle of minimum radius computation on a grey scale image:

circle of minimum radius enclosing shape

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Geometry 2d	None	None	Custom	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 2d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet2d = PyIPSDK.createMeasureInfoSet2d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet2d, "MinEnclosingCircle2dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis2d(inGreyImg, inLabelImg2d, inMeasureInfoSet2d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("MinEnclosingCircle2dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label estimation radius : " + str(outMsrValues[1].getRadius()))
    print("First label estimation center : " + str(outMsrValues[1].centerX()) + ", " + str(outMsrValues[1].centerY()))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg2d = loadTiffImageFile(inputGreyImgPath);

    // read entity shape 2d collection used for processing
    Shape2dCollPtr pShape2dColl = boost::make_shared<Shape2dColl>();
    IPSDK_REQUIRE(readFromXmlFile(inputShape2dCollPath, *pShape2dColl) == true);

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create2dInstance();
    createMeasureInfo(pMeasureInfoSet, "MinEnclosingCircle2dMsr");

    // compute measure on shape 2d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis2d(pInGreyImg2d, pShape2dColl, pMeasureInfoSet);

    // retrieve associated results
    const MeasureConstPtr& pMinEnclosingCircle2dOutMsr = pOutMeasureSet->getMeasure("MinEnclosingCircle2dMsr");
    const Circle2dMsrResults& outResults = static_cast<const Circle2dMsrResults&>(pMinEnclosingCircle2dOutMsr->getMeasureResult());
