NbPixels2dSee full documentation

Number of pixels in shape 2d measurement.

NbPixels2d measure simply count number of pixels associated to a 2d shape.

Note that shape 2d area and number of pixels may differ since area is computed with respect to a given polygonal approximation while the number of pixels only take care of the initial image binary shape.

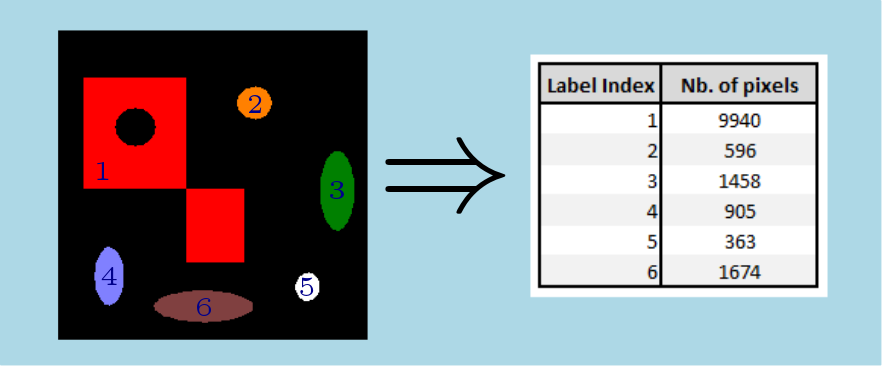

Here is an example of number of pixels measurement :

Number of pixels in shape 2d measurement

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Geometry 2d	None	None	Value (ipsdk::ipUInt64)	Row Intersections

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 2d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet2d = PyIPSDK.createMeasureInfoSet2d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet2d, "NbPixels2dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis2d(inGreyImg, inLabelImg2d, inMeasureInfoSet2d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("NbPixels2dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

        // opening grey level input image
    ImagePtr pInGreyImg2d = loadTiffImageFile(inputGreyImgPath);

    // read entity shape 2d collection used for processing
    Shape2dCollPtr pShape2dColl = boost::make_shared<Shape2dColl>();
    readFromXmlFile(inputShape2dCollPath, *pShape2dColl);

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create2dInstance();
    BoolResult bCreateNbPixels2dMsr = pMeasureInfoSet->createMeasureInfo("NbPixels2dMsr");
    IPSDK_REQUIRE_MESSAGE(bCreateNbPixels2dMsr == true, bCreateNbPixels2dMsr.getMsg());

    // compute measure on shape 2d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis2d(pInGreyImg2d, pShape2dColl, pMeasureInfoSet);

    // retrieve associated results
    const MeasureConstPtr& pNbPixels2dOutMsr = pOutMeasureSet->getMeasure("NbPixels2dMsr");
    const ValueMeasureResult<ipUInt64>& outResults = static_cast<const ValueMeasureResult<ipUInt64>&>(pNbPixels2dOutMsr->getMeasureResult());
