Measure allowing to get the height of the minimal oriented bounding box of a shape.

This measure computes the height of the oriented minimal bounding box for each shape. The height is lower than the shape length and width.

Note that without any rotation, the height is the shape size along the z-axis.

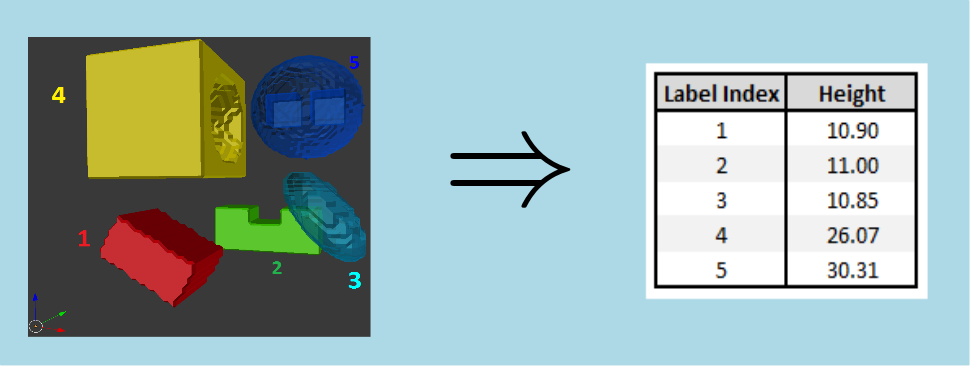

Here is an example of height oriented bounding box measurement :

See OrientedBoundingBox3d for more details about the oriented bounding box calculation.

Measure allowing to get the height of the minimal oriented bounding box of a shape

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	Length	OBBHeightMsrParams	Value (ipsdk::ipReal64)	Both

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "OBBHeightMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("OBBHeightMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg3d = loadTiffImageFile(inputGreyImgPath, eTiffDirectoryMode::eTDM_Volume);
    // read entity shape 3d collection used for processing
    Shape3dCollPtr pShape3dColl = boost::make_shared<Shape3dColl>();
    readFromBinaryFile(inputShape3dCollPath, *pShape3dColl);
    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "OBBHeightMsr", createOBBHeightMsrParams(1));

    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis3d(pInGreyImg3d, pShape3dColl, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pOBBHeightOutMsr = pOutMeasureSet->getMeasure("OBBHeightMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pOBBHeightOutMsr->getMeasureResult());
