Opening 2dSee full documentation

image =	opening2dImg (inImg,inSEXY)
image =	opening2dImg (inImg,inSEXY,inOptBorderExtensionPolicy)

Detailed Description

Algorithm for image 2d opening.

Morphological opening of an image by a given structuring element InSEXY is defined as the dilation of the erosion of image by InSEXY :

See Erosion 2d and Dilation 2d respectively for more informations about these operations.

Note

Behavior of this algorithm is specialized using specific morphological structuring elements (see 2d structuring elements for more informations about these shapes).
Please refer to Usage for examples of usage of different types of specific structuring elements during morphological operations.

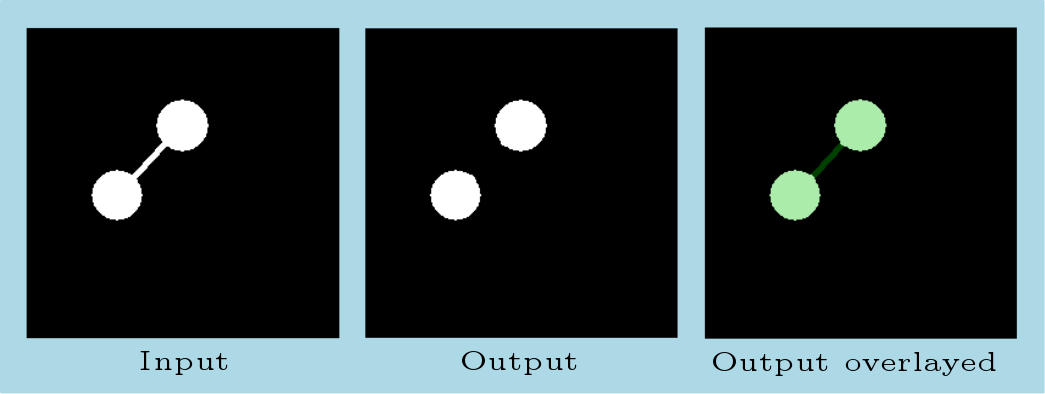

Here is an example of a opening 2d extraction operation applied to a binary input image with a circular structuring element with radius 5 :

In this example we can see that such an operation can be used to separate particules weakly connected.

Note

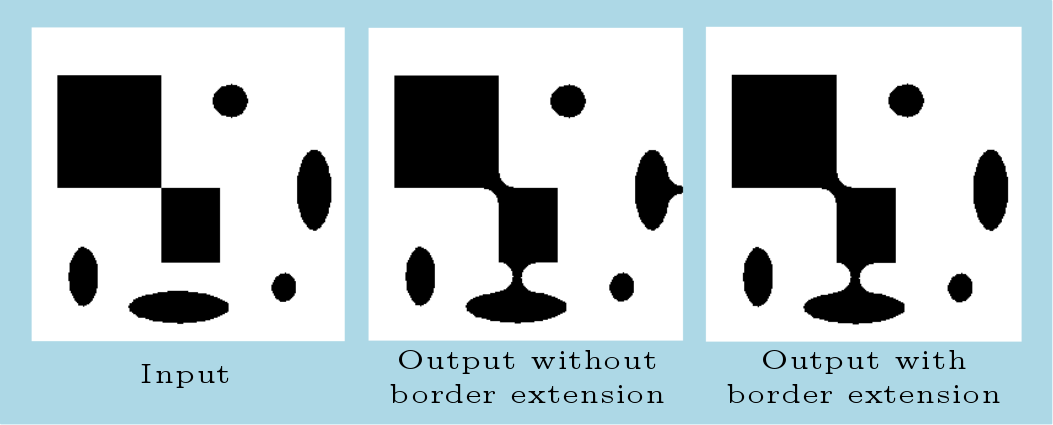

By default this algorithm uses a fast but inexact method to handle holes for which a contact may be created with image borders after first erosion step. Indeed, erosion step do not allows to keep a notion of deepness of such created image border contacts and then dilation step may keep these contacts when it should not. To avoid such errors user can set input algorithm parameter InOptBorderExtensionPolicy to value ipsdk::imaproc::attr::eBorderExtensionPolicy::eBEP_Enable. This will allow to handle exactly previous case at the cost of some computing times and of an additional allocated enlarged image. Here is an example of such problems, note contact created on right ellipse with fast method, and adjusted result with border extension method enabled :

See also

http://en.wikipedia.org/wiki/Opening_%28morphology%29

Note

This algorithm is associated with two temporary working images. These working temporary images can be provided by user or will be automatically allocated when requested.

• ipsdk::imaproc::attr::OutOptWk1Img will only be used if InOptBorderExtensionPolicy is set to ipsdk::imaproc::attr::eBorderExtensionPolicy::eBEP_Enable.
• ipsdk::imaproc::attr::OutOptWk2Img is only used in special processing cases defined via ipsdk::imaproc::morpho::eSEProcessingCase enumerate. Such situation can be tested using ipsdk::imaproc::morpho::getSEProcessingCase function and associated image buffer type can be retrieved using ipsdk::imaproc::morpho::getSEWkImageBufferType.

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLBasicMorphology as morpho

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # definition of used structuring element
    inSE = PyIPSDK.circularSEXYInfo(8)

    # opening 2d image computation
    outImg = morpho.opening2dImg(inImg, inSE)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLBasicMorphology/Processor/Opening2dImg/Opening2dImg.h>

Code Example

    // create a 5x7 rectangular structuring element
    StructuringElementXYInfoConstPtr pInSEXY = genericSEXYInfo(*rectangularSEXY(5, 7));

    // opening input image
    ImagePtr pInImg = loadTiffImageFile(inputImgPath);

    // compute opening on input image
    ImagePtr pOutImg = opening2dImg(pInImg, pInSEXY);
