3d Oriented bounding box fitting a shape

This measure uses FeretDiameter3d to compute the oriented minimum bounding box for each shape.

This measure computes, for each shape, an approximation of the oriented bounding box as follows: for each shape, bounding boxes are computed on a customizable number of uniformly distributed orientations. The one with the minimal volume is then considered as the oriented bounding box of the shape.

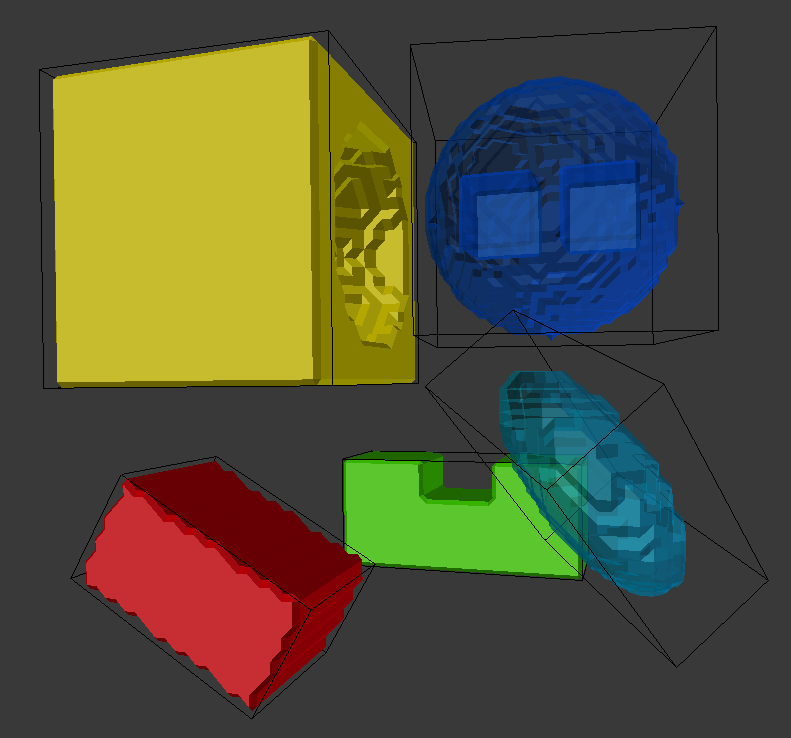

Here is an example of oriented bounding box measurement calculated on the shapes extracted from the 3d test image MorphoBin3d6.tif. The oriented bounding boxes are displayed with black lines :

3d Oriented bounding box fitting a shape

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Geometry 3d	None	OrientedBoundingBox3dMsrParams	Custom	Both

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "OrientedBoundingBox3dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("OrientedBoundingBox3dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label estimation major radius : " + str(outMsrValues[1].getLength()))
    print("First label estimation medium radius : " + str(outMsrValues[1].getWidth()))
    print("First label estimation minor radius : " + str(outMsrValues[1].getHeight()))
    print("First label estimation alpha : " + str(outMsrValues[1].getAlpha()))
    print("First label estimation beta : " + str(outMsrValues[1].getBeta()))
    print("First label estimation chi : " + str(outMsrValues[1].getChi()))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg3d = loadTiffImageFile(inputGreyImgPath);
    // read entity shape 3d collection used for processing
    Shape3dCollPtr pShape3dColl = boost::make_shared<Shape3dColl>();
    IPSDK_REQUIRE(readFromXmlFile(inputShape3dCollPath, *pShape3dColl) == true);
    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "OrientedBoundingBox3dMsr", createOrientedBoundingBox3dMsrParams(36));

    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis3d(pInGreyImg3d, pShape3dColl, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pOrientedBoundingBox3dOutMsr = pOutMeasureSet->getMeasure("OrientedBoundingBox3dMsr");
    const OrientedBoundingBox3dMsrResults& outResults = static_cast<const OrientedBoundingBox3dMsrResults&>(pOrientedBoundingBox3dOutMsr->getMeasureResult());
