Put 2d ROISee full documentation

void	putROI2dImg (inOutImg,inRoiImg,xOffset,yOffset)
void	putROI2dImg (inImg,inRoiImg,xOffset,yOffset,outImg)

Detailed Description

Algorithm allowing to set the the 2d ROI of an image with the content of another image.

This algorithm to set the the 2d ROI of an image (InImg) with the content of another image (InROIImg). The ROI is delimited by a rectangle, defined by the attribute InInputImg2dOffset and by the size of the ROI image.

InImg and OutImg have the same type and size
InImg and InROIImg have the same type, and the size of InROIImg cannot exceed the size of InImg

On output image, values are given by :

,

with and the sizes of InROIImg image along x-axis and y-axis, respectively.

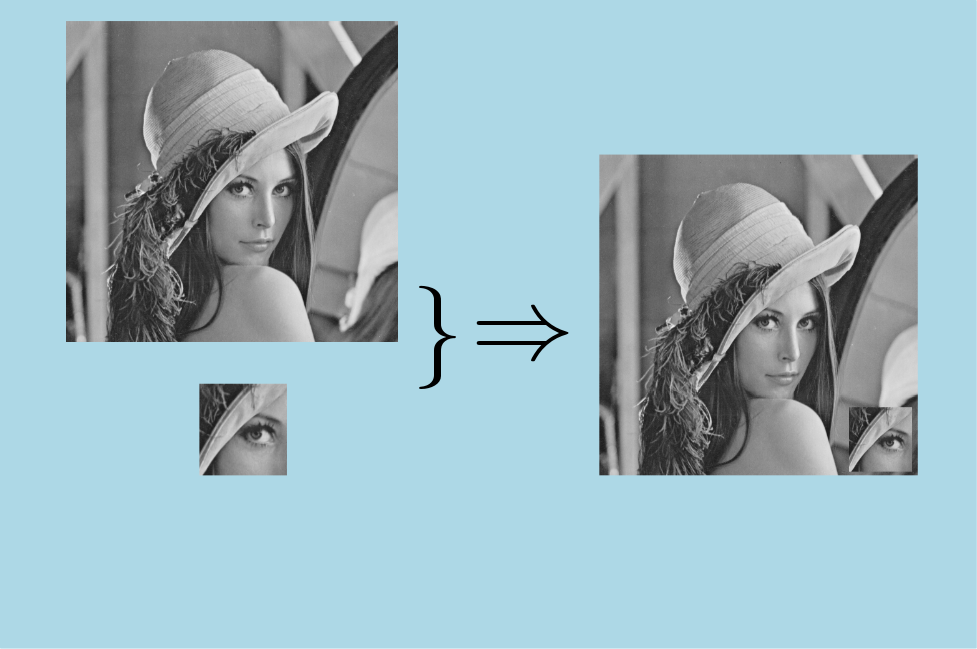

An example of 2d ROI extraction is shown below, with the following parameters:

•
•

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLUtility as util

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)
    inROIImg = PyIPSDK.loadTiffImageFile(inputROIImgPath)

    # intialization of output image
    outGeometry = PyIPSDK.geometry2d(PyIPSDK.eImageBufferType.eIBT_UInt8, 510, 509)
    outImg = PyIPSDK.createImage(outGeometry)
    # 2d ROI insertion
    util.putROI2dImg(inImg, inROIImg, 400, 401, outImg)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLUtility/Processor/PutROI2dImg/PutROI2dImg.h>

Code Example

        // opening input image
        ImagePtr pInImg = loadTiffImageFile(inputImgPath);
        if(pInImg->getBufferType() != imageBufferType)
            pInImg = convertImg(pInImg, imageBufferType);

        ImagePtr pInROIImg = loadTiffImageFile(inputROIImgPath);
        if(pInROIImg->getBufferType() != imageBufferType)
            pInROIImg = convertImg(pInROIImg, imageBufferType);

        boost::shared_ptr<MemoryImage> pOutImg(boost::make_shared<MemoryImage>());
        pOutImg->init(pInImg->getGeometry());

        // ROI insertion in image
        putROI2dImg(pInImg, pInROIImg, inOffsetX, inOffsetY, pOutImg);
