Remove Border 2d

image =

removeBorder2dImg (inBinLabImg)

Detailed Description

removal of connected components in contact with image borders in binary or label 2d images

This algorithm allows to remove connected components in contact with at least an image border in an input binary or label image InBinLabImg with respect to a given neighborhood 2d policy (see 2d neighborhood models).

Two versions of binary algorithm are implemented which can be selected using attribute InOptOptimizationPolicy which associated to enumerate ipsdk::imaproc::attr::eProcessingOptimizationPolicy :

• a 'fast' version using a binary and a label intermediate image (which can optionally be provided via OutOptWk1BinImg and OutOptWk1LabelImg attributes)
• a low memory consumption iterative algorithm which propagate reconstructed elements until convergence. These parameters are ignored in case of input label image.

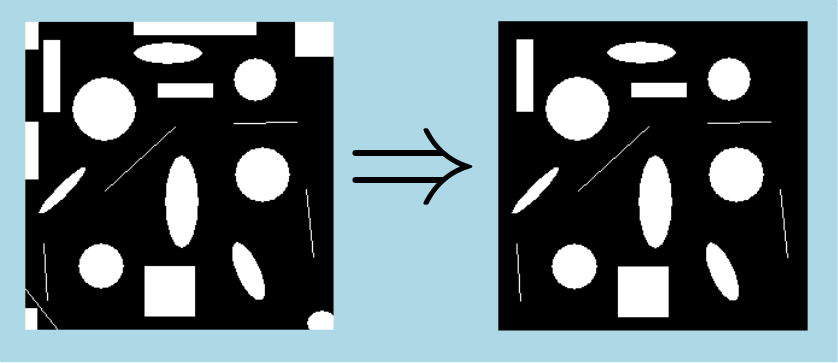

Here is an example of border removal on a binary image 2d :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLAdvancedMorphology as advmorpho

Code Example

    # opening of input image
    inBinImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # compute border removal on input image
    outImg = advmorpho.removeBorder2dImg(inBinImg)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLAdvancedMorphology/Processor/RemoveBorder2dImg/RemoveBorder2dImg.h>

Code Example

    // opening input image
    ImagePtr pInBinImg = loadTiffImageFile(inputImgPath);

    // compute border removal on input image
    ImagePtr pOutImg = removeBorder2dImg(pInBinImg);
