Remove Holes 3d

image =	removeSmallHoles3dImg (inBinImg3d,minShapeSize)
image =	removeBigHoles3dImg (inBinImg3d,minShapeSize)

Detailed Description

Removes small or big holes in a binary 3d image.

This algorithm allows to remove small or big holes in a 3D binary image.

removeSmallHoles3dImg removes small holes with a number of voxels lower than InMinShapeSize.

removeBigHoles3dImg removes small holes with a number of voxels higher than InMinShapeSize.

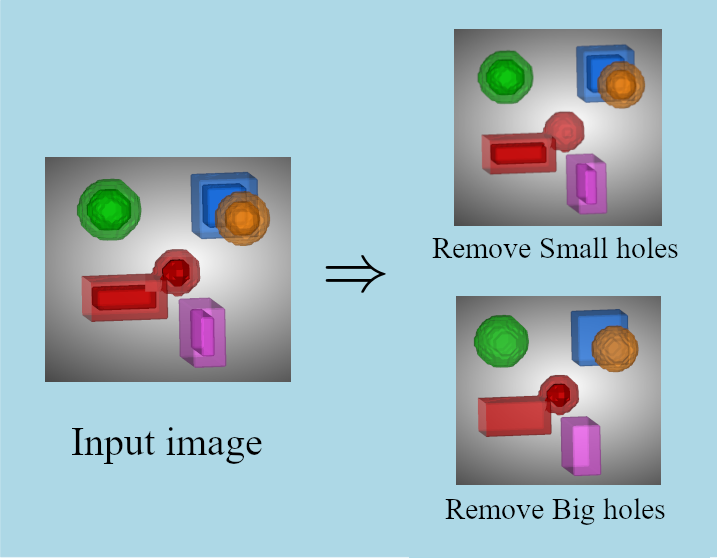

Here is an example of small and big holes removals:

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLAdvancedMorphology as advmorpho

Code Example

    # opening of input image
    inBinImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # Remove small holes
    outImgSmall = advmorpho.removeSmallHoles2dImg(inBinImg, 600)

    # Remove big holes
    outImgBig = advmorpho.removeBigHoles2dImg(inBinImg, 600)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLAdvancedMorphology/Processor/RemoveHoles3dImg/RemoveHoles3dImg.h>

Code Example

    // opening input image
    ImagePtr pInBinImg = loadTiffImageFile(inputImgPath);

    // Remove small holes
    ImagePtr pOutImgSmall = removeSmallHoles3dImg(pInBinImg, 600);

    // Remove big holes
    ImagePtr pOutImgBig = removeBigHoles3dImg(pInBinImg, 600);
