Ring unrolling algorithmSee full documentation

image =	unrollRingImg (inImg,inCenter2d,inRadius,inRingHalfThickness,inOptOutSizeX)
image =	unrollRingImg (inImg,inCenter2d,inRadius,inRingHalfThickness,inOptTheta0,inOptInterpolationPolicy,inOptOutSizeX)

Detailed Description

algorithm allowing to unroll surface of a ring

This algorithm allows to unroll surface of a ring into an image to a rectangular image area.

Given an input image , and the following information :

• : center for considered ring (x and y coordinates)
• : radius for considered ring
• : half thickness for considered ring
• : an optional starting angle for unrolling process (with null default value)
• : an optional interpolation policy used during unrolling process (see ipsdk::imaproc::attr::eInterpolationPolicy for more informations)

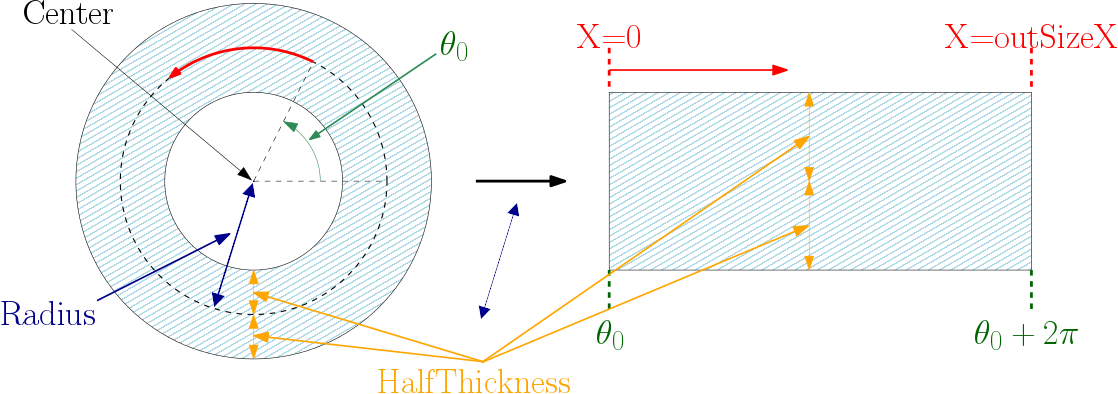

algorithm will compute the unrolled surface of considered ring with respect to following figure :

Output image can be automatically created, in this case, user must setup parameter.

Here is an example of application of UnrollRingImg algorithm on a 2d image :

Here is an other example of application of UnrollRingImg algorithm on a 2d image :

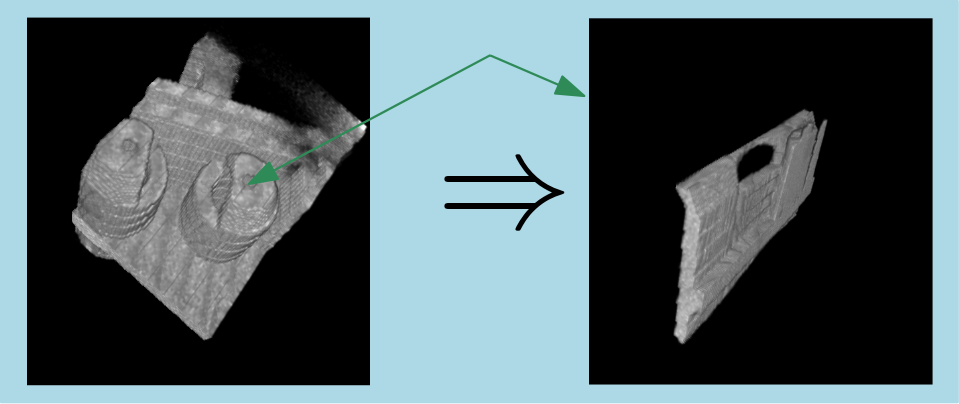

This algorithm can also be used on 3d cylinder oriented with respect to z axis :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLGeometricTransform as gtrans

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImg2dPath1)

    # process ring unrolling in 2d case
    center1 = PyIPSDK.createCoords2d(210, 203);
    radius1 = 125;
    ringHalfThickness1 = 50;
    outSizeX1 = 1000;
    outImg2d1 = gtrans.unrollRingImg(inImg, center1, radius1, ringHalfThickness1, outSizeX1);

    # opening input 3d image
    inImg3d = PyIPSDK.loadTiffImageFile(inputImg3dPath1);

    # process ring unrolling in 3d case
    center2 = PyIPSDK.createCoords2d(52, 40);
    radius2 = 15;
    ringHalfThickness2 = 10;
    outSizeX2 = 100;
    outImg3d1 = gtrans.unrollRingImg(inImg3d, center2, radius2, ringHalfThickness2, outSizeX2);

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLGeometricTransform/Processor/UnrollRingImg/UnrollRingImg.h>

Code Example

    // opening input 2d image
    ImagePtr pInImg = loadTiffImageFile(inputImg2dPath1);

    // process ring unrolling in 2d case
    Coords2dPtr pCenter1 = createCoords2d(210, 203);
    const ipReal64 radius1 = 125;
    const ipUInt32 ringHalfThickness1 = 50;
    const ipUInt32 outSizeX1 = 1000;
    ImagePtr pOutImg2d1 = unrollRingImg(pInImg, pCenter1, radius1, ringHalfThickness1, outSizeX1);

    // opening input 3d image
    ImagePtr pInImg3d = loadTiffImageFile(inputImg3dPath1);

    // process ring unrolling in 3d case
    Coords2dPtr pCenter2 = createCoords2d(52, 40);
    const ipReal64 radius2 = 15;
    const ipUInt32 ringHalfThickness2 = 10;
    const ipUInt32 outSizeX2 = 100;
    ImagePtr pOutImg3d1 = unrollRingImg(pInImg3d, pCenter2, radius2, ringHalfThickness2, outSizeX2);
