measure the roughness

Roughness measure needs, among other input parameters, the maximum distance between 2 points for the polygon approximation. This allows to extract another polygon approximation $A$ from the shape $S$ and computes its perimeter $p_A$ . The roughness $R$ is simply the ratio between those perimeters:

$R = \frac{\max \left( p_S, p_A \right)}{\min \left( p_S, p_A \right)}$

Where $p_S$ is the perimeter of the input shape $S$ and $p_A$ is the perimeter of the second polygon approximation $A$ using the measure input parameter PolygApproxMaxDist.

We note that $R \geq 1$ and increases when the difference between $p_S$ and $p_A$ increases.

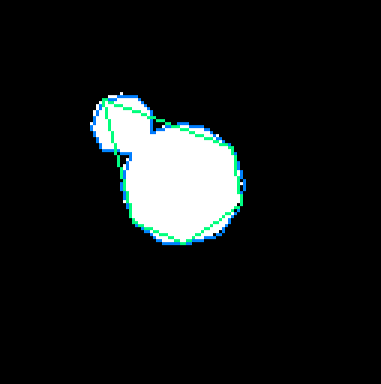

The following figure illustrates a concave shape with two polygon approximations. The blue polygon has a maximum distance polygon approximation of 1.5 (its default value) and the green one has an approximation of 10:

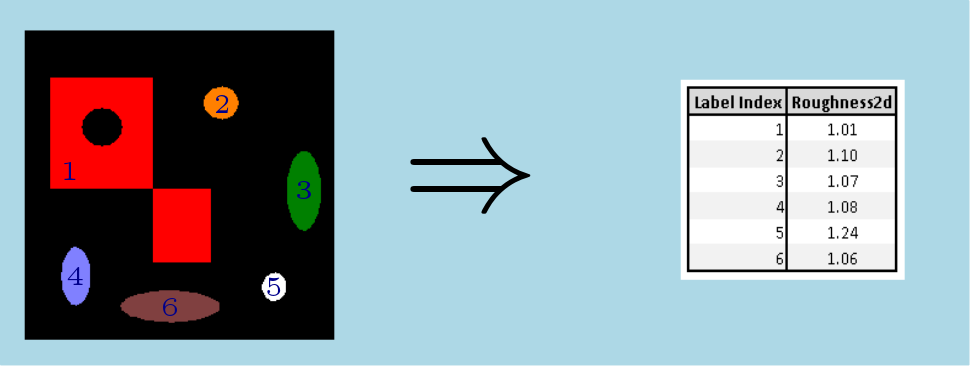

Here is an example of roughness measurement, with "consider holes" parameter set to 'true'and the maximum distance polygon approximation set to 10:

measure the roughness

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Geometry 2d	None	Roughness2dMsrParams	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 2d case :

import PyIPSDK

import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet2d = PyIPSDK.createMeasureInfoSet2d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet2d, "Roughness2dMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis2d(inGreyImg, inLabelImg2d, inMeasureInfoSet2d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("Roughness2dMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg2d = loadTiffImageFile(inputGreyImgPath);
    // read entity shape 2d collection used for processing
    Shape2dCollPtr pShape2dColl = boost::make_shared<Shape2dColl>();
    IPSDK_REQUIRE(readFromXmlFile(inputShape2dCollPath, *pShape2dColl) == true);
    // define a measure info set
    const ipBool bProcessHoles = true;
    const ipReal64 maxDist = 10.;
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create2dInstance();
    createMeasureInfo(pMeasureInfoSet, "Roughness2dMsr", createRoughness2dMsrParams(bProcessHoles, maxDist));

    // compute measure on shape 2d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis2d(pInGreyImg2d, pShape2dColl, pMeasureInfoSet);
    // retrieve associated results
    const MeasureConstPtr& pRoughness2dOutMsr = pOutMeasureSet->getMeasure("Roughness2dMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pRoughness2dOutMsr->getMeasureResult());
