image = variance2dImg (inImg,inHalfKnlSizeX,inHalfKnlSizeY)

Detailed Description

local 2d image variance computation

This algorithm computes for each pixel of output image associated local variance on a rectangular neighbourhood of input image.

Given an input image $InImg$ and rectangular kernel half sizes $N_x = InHalfKnlSizeX$ and $N_y = InHalfKnlSizeY$ , output image values are given by :

$OutImg[x, y] = \dfrac{1}{(2 N_y + 1)(2 N_x + 1)}\sum_{o_{y}=-N_y}^{N_y}{\sum_{o_{x}=N_x}^{N_x}{(InImg[x, y]-\bar{M}[x, y])^2}}$

where

$\bar{M}[x, y] = \dfrac{1}{(2 N_y + 1)(2 N_x + 1)}\sum_{o_{y}=-N_y}^{N_y}{\sum_{o_{x}=N_x}^{N_x}{InImg[x, y]}}$

See also: http://en.wikipedia.org/wiki/Variance

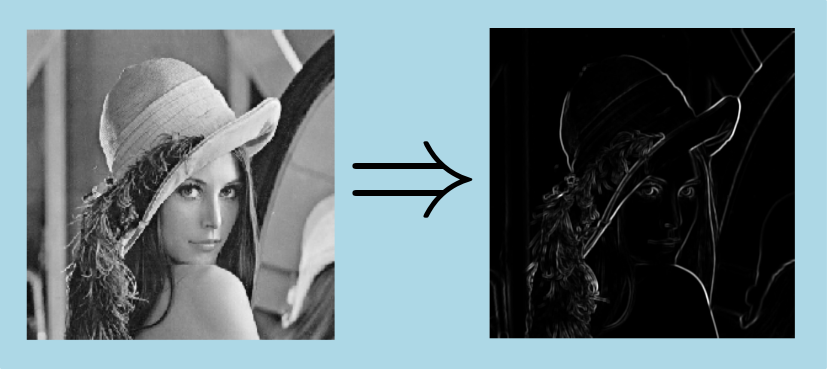

Here is an example of a Variance computation applied on a 8 bits grey level image with $InHalfKnlSizeX = InHalfKnlSizeY = 2$ :

Example of Python code :

Example imports

import PyIPSDK

import PyIPSDK.IPSDKIPLStats as stats

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # variance 2d image computation
    outImg = stats.variance2dImg(inImg, 3, 3)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLStats/Processor/Variance2dImg/Variance2dImg.h>

Code Example

        // opening input image
        ImageGeometryPtr pInImageGeometry = geometry2d(imageBufferType, sizeX, sizeY);
        ImagePtr pInImg = loadRawImageFile(inputImgPath, *pInImageGeometry);
        // compute variance on input image
        ImagePtr pOutImg = variance2dImg(pInImg, inHalfKnlSizeX, inHalfKnlSizeY);
