Volume Percent 3d measurementSee full documentation

Doubles =	volumePercent3dMsr (inImg)
Doubles =	volumePercent3dMsr (inImg,inMaskImg)

Detailed Description

Computes the ratio between the number of pivoxels and the total image size.

This algorithm computes the ratio between the 3D objects volumes and the total image volume. Let VolumePercent(i) be the result for the ith object, Volume(i) its volume and (sizeX, sizeY, sizeZ) the image size, the calculation can be expressed as follows:

In the case of binary images, the result contains the volume ratio for the background (voxels set to 0) at index 0 and the volume ratio for the foreground (voxels set to 1) at index 1.

In the case of label images, the result contains the volume ratio for the background (voxels set to 0) at index 0 and then the volume ratio for each label.

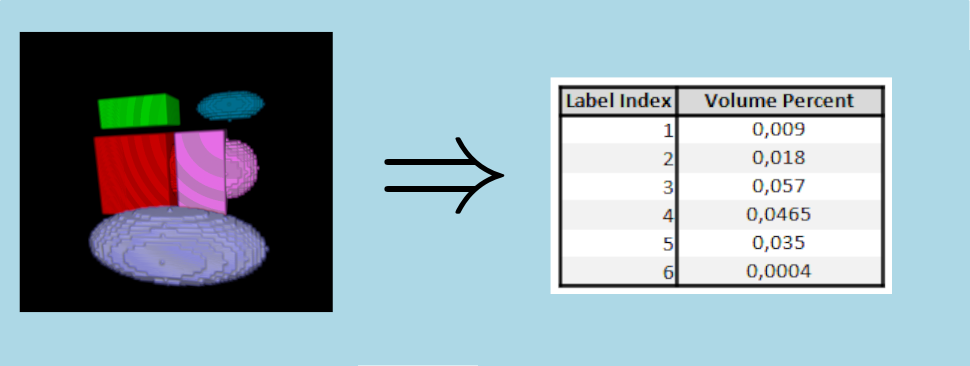

Here is an example of result for a label image:

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLGlobalMeasure as glbmsr

Code Example

    # measurement for a single slice
    result = glbmsr.volumePercent3dMsr(inImg)

    # retrieve measurement results
    print("Volume percent for the first shape is " + str(result.coll[1]))

    # measurement for a multi-slice case
    planIndexedResult = glbmsr.multiSlice_volumePercent3dMsr(inImg_multiSlice)

    # retrieve measurement results
    resSlice1 = PyIPSDK.toPyDict(planIndexedResult)[(0, 0, 1)]
    print("Volume percent for the second slice is " + str(resSlice1["Coll"]))

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLGlobalMeasure/Processor/VolumePercent3dMsr/VolumePercent3dMsr.h>

Code Example

        // ------------ Calculation on a mono-slice grey level image ------------ //

        // Compute area percents on the mono-slice input image
        DoublesPtr pResult = volumePercent3dMsr(pInImg);

        // Retrieve the results as scalar variables
        // pResBinary contains 2 values for binary input images : vResult[0] for background and vResult[1] for foreground
        // and nbLabels + 1 values to include the background
        const std::vector<ipReal64>& vResult = pResult->getLeafColl<Doubles::Coll>();

        // --------------- Calculation on a multi-slice sequence image -------------- //

        // Compute area percents on the monoslice input binary image
        PlanIndexedDoublesPtr pResult_multiSlice = multiSlice_volumePercent3dMsr(pInImg_multiSlice);

        // Retrieve the results as scalar variables for z = 1
        const ipUInt64 t = 1;
        const std::vector<ipReal64>& vResult_multiSlice = pResult_multiSlice->getValue(0, 0, t).getNode<Doubles::Coll>().getColl();
