Warping 2d algorithmSee full documentation

image =	warp2dImg (inImg,inWarpMotionTransform2d,inOptInterpolationPolicy)
image =	warp2dImg (inImg,inWarpMotionTransform2d)

Detailed Description

algorithm allowing to apply a motion transformation warping operation on a 2d image

This algorithm allows to apply a motion transformation defined by parameter on an input image . Available warping transformations are defined by enumerate ipsdk::math::transform::eGeometricTransform2dType.

Interpolation policy used during processing is defined by optional input parameter (see ipsdk::imaproc::attr::eInterpolationPolicy).

On output, algorithm generates requested warped image and optionally output mask image . Size of output image is not ruled :

• pixels covered by transformed input image are processed using defined interpolation policy (and corresponding mask pixels are set to 1).
• pixels not covered are simply left to zero (and corresponding mask pixels are set to 0).

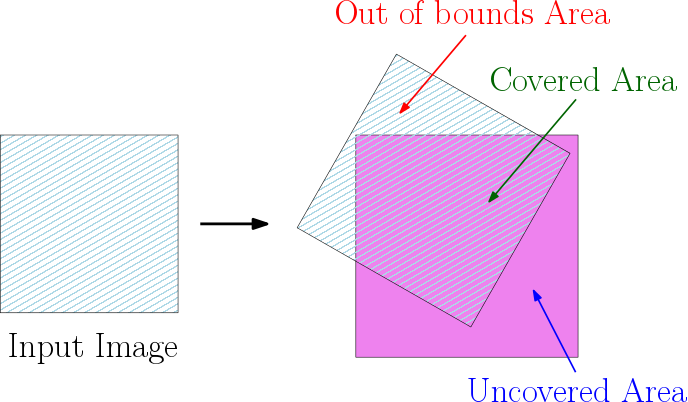

This process is illustrated by following figure :

If output image is not provided by user, a default output image size is computed using computeWarpedDefaultSize function.

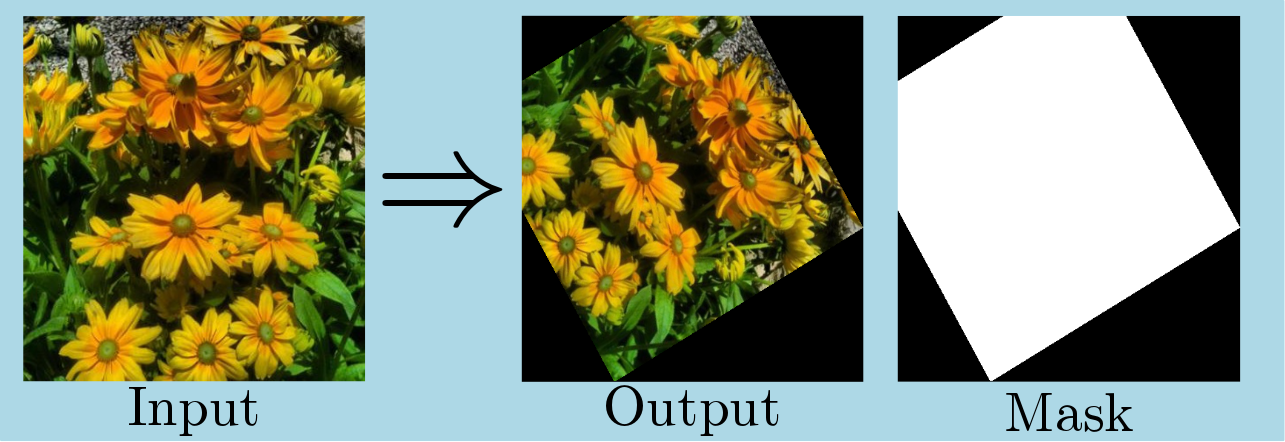

Here is an example of application of Warp2dImg algorithm on a 2d image, in this case we apply a centered rotation on input image :

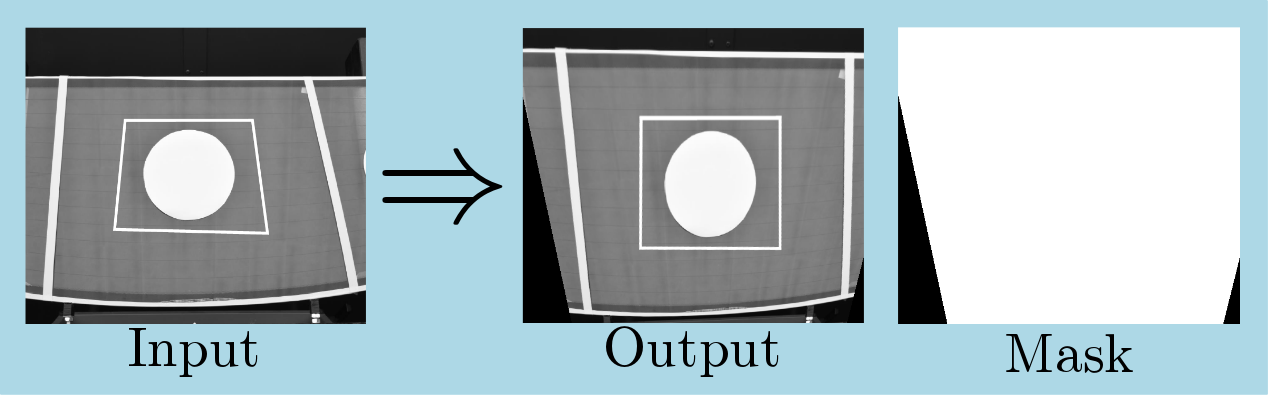

Here is another example of application of Warp2dImg algorithm on a 2d image, in this case we apply an homography on input image :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLGeometricTransform as gtrans

Code Example

    # opening of input images
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # case of a translation transformation
    transform1 = PyIPSDK.createWarpMotionTransform2d(PyIPSDK.eGeometricTransform2dType.eGT2DT_Translation,
                                                     [10, 30])
    outImg1 = gtrans.warp2dImg(inImg, transform1)

    # case of a rotation transformation with retrieval of output optional mask image
    #  In this case we compute a suitable output image size and allocate
    # output image and output optional mask
    transform2 = PyIPSDK.createCenteredRotation(math.pi/3, inImg)
    outputSizeX, outputSizeY = gtrans.computeWarpedDefaultSize(transform2, inImg)
    outImg2 = PyIPSDK.createImageRgb(PyIPSDK.eImageBufferType.eIBT_UInt8, outputSizeX, outputSizeY)
    outOptMaskImg2 = PyIPSDK.createImage(PyIPSDK.eImageBufferType.eIBT_Binary, outputSizeX, outputSizeY)
    gtrans.warp2dImg(inImg, transform2, PyIPSDK.eInterpolationPolicy.eIP_Cubic, outImg2, outOptMaskImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLGeometricTransform/Processor/Warp2dImg/Warp2dImg.h>

Code Example

    // opening input image
    ImagePtr pInImg = loadTiffImageFile(inputImgPath);

    // case of a translation transformation
    math::transform::Translation2d translation(10, 30);
    WarpMotionTransform2dConstPtr pTransform1 = createWarpMotionTransform2d(translation);
    ImagePtr pOutImg1 = warp2dImg(pInImg, pTransform1);

    // case of a rotation transformation with retrieval of output optional mask image
    // In this case we compute a suitable output image size and allocate
    // output image and output optional mask
    WarpMotionTransform2dConstPtr pTransform2 = createCenteredRotation(M_PI / 3, *pInImg);
    ipUInt64 outputSizeX, outputSizeY;
    computeWarpedDefaultSize(*pTransform2, *pInImg, outputSizeX, outputSizeY);
    ImageGeometryPtr pOutGeometry2 = geometryRgb2d(pInImg->getBufferType(), outputSizeX, outputSizeY);
    MemoryImagePtr pOutImg2(boost::make_shared<MemoryImage>());
    pOutImg2->init(*pOutGeometry2);
    ImageGeometryPtr pOutMaskGeometry2 = geometry2d(eImageBufferType::eIBT_Binary, outputSizeX, outputSizeY);
    MemoryImagePtr pOutOptMaskImg2(boost::make_shared<MemoryImage>());
    pOutOptMaskImg2->init(*pOutMaskGeometry2);
    warp2dImg(pInImg, pTransform2, eInterpolationPolicy::eIP_Cubic, pOutImg2, pOutOptMaskImg2);
