Warping 3d algorithmSee full documentation

image =	warp3dImg (inImg,inWarpMotionTransform3d)
image =	warp3dImg (inImg,inWarpMotionTransform3d,inOptInterpolationPolicy)

Detailed Description

algorithm allowing to apply a motion transformation warping operation on a 3d image

This algorithm allows to apply a motion transformation defined by parameter on an input image . Available warping transformations are defined by enumerate ipsdk::math::transform::eGeometricTransform3dType.

Interpolation policy used during processing is defined by optional input parameter (see ipsdk::imaproc::attr::eInterpolationPolicy).

On output, algorithm generates requested warped image and optionally output mask image . Size of output image is not ruled :

• pixels covered by transformed input image are processed using defined interpolation policy (and corresponding mask pixels are set to 1).
• pixels not covered are simply left to zero (and corresponding mask pixels are set to 0).

This process is illustrated in 2d case : see Warping 2d algorithm.

If output image is not provided by user, a default output image size is computed using computeWarpedDefaultSize function.

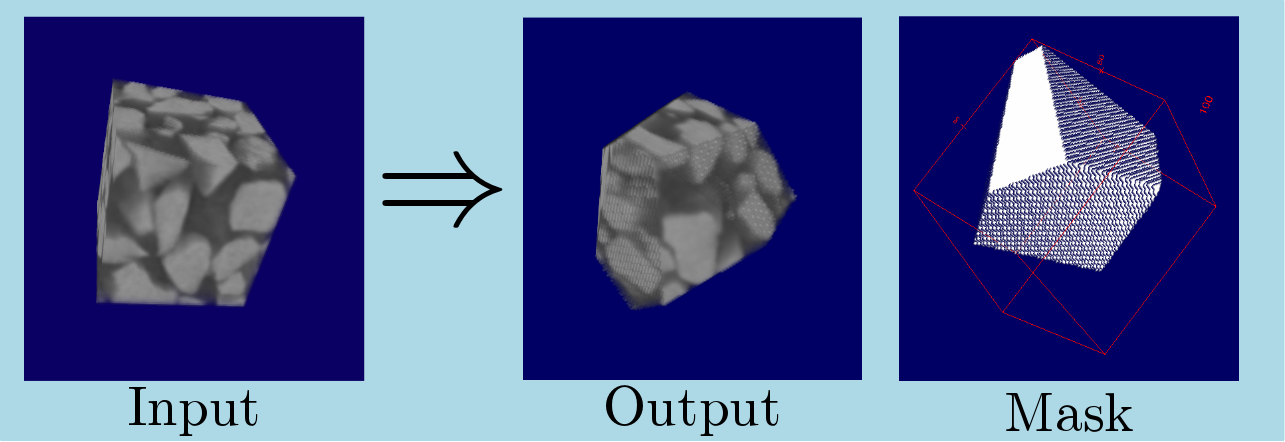

Here is an example of application of Warp3dImg algorithm on a 3d image in case of a centered rotation :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLGeometricTransform as gtrans

Code Example

    # opening of input images
    inImg3d = PyIPSDK.loadTiffImageFile(inputImgPath)

    # case of a translation transformation
    transform1 = PyIPSDK.createWarpMotionTransform3d(PyIPSDK.eGeometricTransform3dType.eGT3DT_Translation,
                                                     [10, 30, -7])
    outImg1 = gtrans.warp3dImg(inImg3d, transform1)

    # case of a rotation transformation with retrieval of output optional mask image
    #  In this case we compute a suitable output image size and allocate
    # output image and output optional mask
    transform2 = PyIPSDK.createCenteredRotation(math.pi/7, -math.pi/12, math.pi/6, inImg3d)
    outputSizeX, outputSizeY, outputSizeZ = gtrans.computeWarpedDefaultSize(transform2, inImg3d)
    outImg2 = PyIPSDK.createImage(PyIPSDK.eImageBufferType.eIBT_UInt16, outputSizeX, outputSizeY, outputSizeZ)
    outOptMaskImg2 = PyIPSDK.createImage(PyIPSDK.eImageBufferType.eIBT_Binary, outputSizeX, outputSizeY, outputSizeZ)
    gtrans.warp3dImg(inImg3d, transform2, PyIPSDK.eInterpolationPolicy.eIP_Cubic, outImg2, outOptMaskImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLGeometricTransform/Processor/Warp3dImg/Warp3dImg.h>

Code Example

    // opening input image
    ImagePtr pInImg3d = loadTiffImageFile(inputImgPath);

    // case of a translation transformation
    math::transform::Translation3d translation(10, 30, -7);
    WarpMotionTransform3dConstPtr pTransform1 = createWarpMotionTransform3d(translation);
    ImagePtr pOutImg1 = warp3dImg(pInImg3d, pTransform1);

    // case of a rotation transformation with retrieval of output optional mask image
    // In this case we compute a suitable output image size and allocate
    // output image and output optional mask
    WarpMotionTransform3dConstPtr pTransform2 = createCenteredRotation(M_PI / 7, -M_PI / 12, M_PI / 6, *pInImg3d);
    ipUInt64 outputSizeX, outputSizeY, outputSizeZ;
    computeWarpedDefaultSize(*pTransform2, *pInImg3d, outputSizeX, outputSizeY, outputSizeZ);
    ImageGeometryPtr pOutGeometry2 = geometry3d(pInImg3d->getBufferType(), outputSizeX, outputSizeY, outputSizeZ);
    MemoryImagePtr pOutImg2(boost::make_shared<MemoryImage>());
    pOutImg2->init(*pOutGeometry2);
    ImageGeometryPtr pOutMaskGeometry2 = geometry3d(eImageBufferType::eIBT_Binary, outputSizeX, outputSizeY, outputSizeZ);
    MemoryImagePtr pOutOptMaskImg2(boost::make_shared<MemoryImage>());
    pOutOptMaskImg2->init(*pOutMaskGeometry2);
    warp3dImg(pInImg3d, pTransform2, eInterpolationPolicy::eIP_Cubic, pOutImg2, pOutOptMaskImg2);
