Y projection 2d : Statistic measurement along the x axisSee full documentation

Doubles =

yProjection2d (inSubImg,eInProjStatType)

Detailed Description

measure of common statistics indicators in the image (mean, max, etc.) computed along the X axis

The computed statistics for each line can be : minimum, maximum, sum, mean, variance, standard deviation or median (see ipsdk::imaproc::attr::eProjStatType).

The output is a vector whose size equals to the number of lines of the input image.

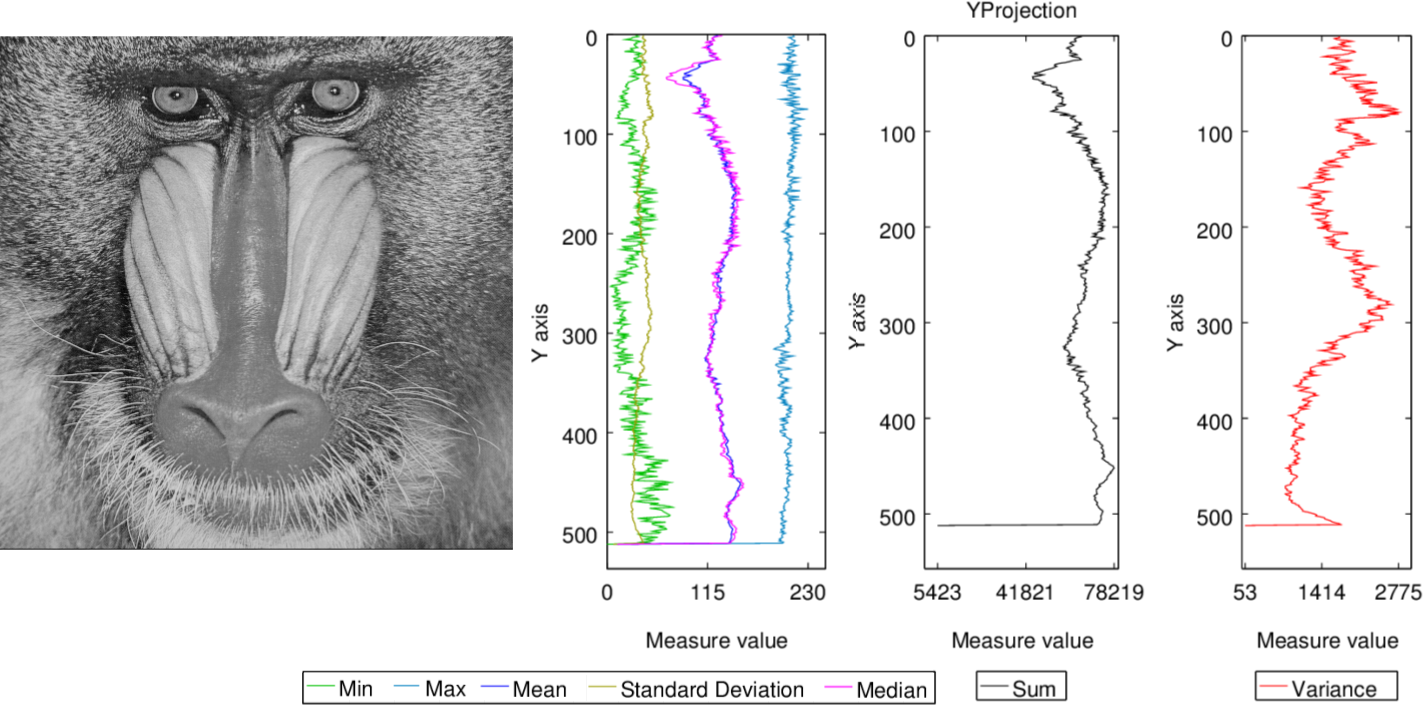

Here is an example of a 8-bits grey level image and all the Y projections operations which can be applied :

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLGlobalMeasure as glbmsr

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # y projection measurement
    yProjection2dResult = glbmsr.yProjection2d(inImg,  PyIPSDK.eProjStatType.ePST_Mean)

    # retrieve measurement results
    meanValues = yProjection2dResult.coll
    print("Mean value for projected image along X axis for y=50 is " + str(meanValues[50]))

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLGlobalMeasure/Processor/YProjection2d/YProjection2d.h>

Code Example

        // compute Y minimum projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatMin = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Min);

        // compute Y maximum projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatMax = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Max);

        // compute Y sum projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatSum = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Sum);

        // compute Y mean projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatMean = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Mean);

        // compute Y variance projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatVar = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Variance);

        // compute Y standard deviation projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatStdDev = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_StdDev);

        // compute Y median projection for input image
        // --------------------------------------------
        DoublesPtr outProjStatMedian = glbmsr::yProjection2d(pInImg, ipsdk::imaproc::attr::eProjStatType::ePST_Median);
