Porosity characterization on FIB images

The processed images are from FIB (Focused Ion Beam) microscopy. The purpose here was to characterize porosities in a nuclear material.

Porosity segmentation on a nuclear material

The analysis was processed on a ROI extracted from the whole volume.

The characterization steps included

  • aligning the volume plans,
  • intensity correction,
  • denoising the ROI,
  • material binarization,
  • hole separation,
  • labelizing the holes.


In addition to assinging an unique label to each hole, it is also possible to compute measures on these elements.

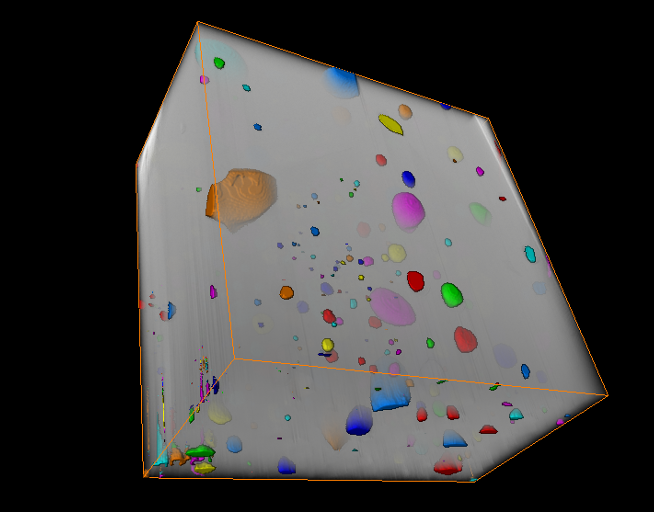

Volume with labelled holes


Display of 3D holes
