Wall thickness computation

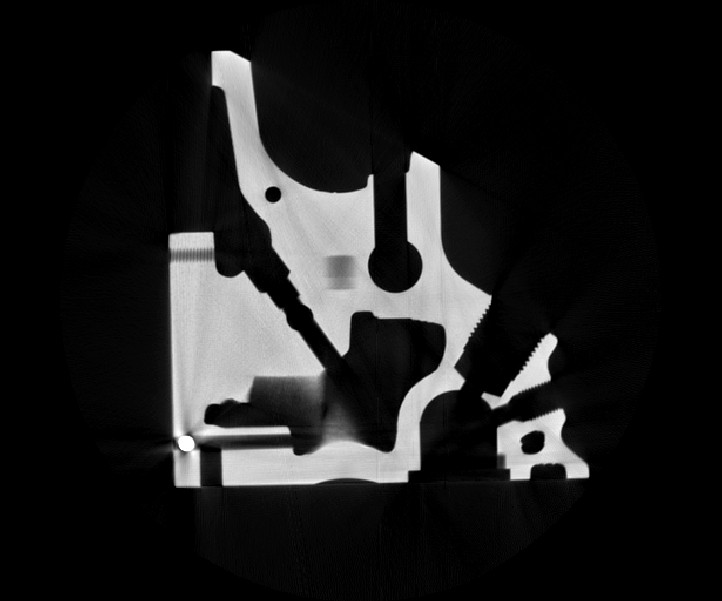

This script computes the object thickness. For a given pixel, the thickness is the radius of the largest circular circle centered on this pixel entirely included in the object.

 The downloadable archive providesmacros for 2D and 3D wall thickness calculation.

The thickness can also be associated to the circle’s diameter instead of the radius. In that case, it is necessary to multiply the macro result by two.

With IPSDK Explorer, it is recommanded to change the LUT for a better result rendering.

The proposed script can be imported into IPSDK Explorer in the form of a macro. The new command will then be directly available in the Macro group.
